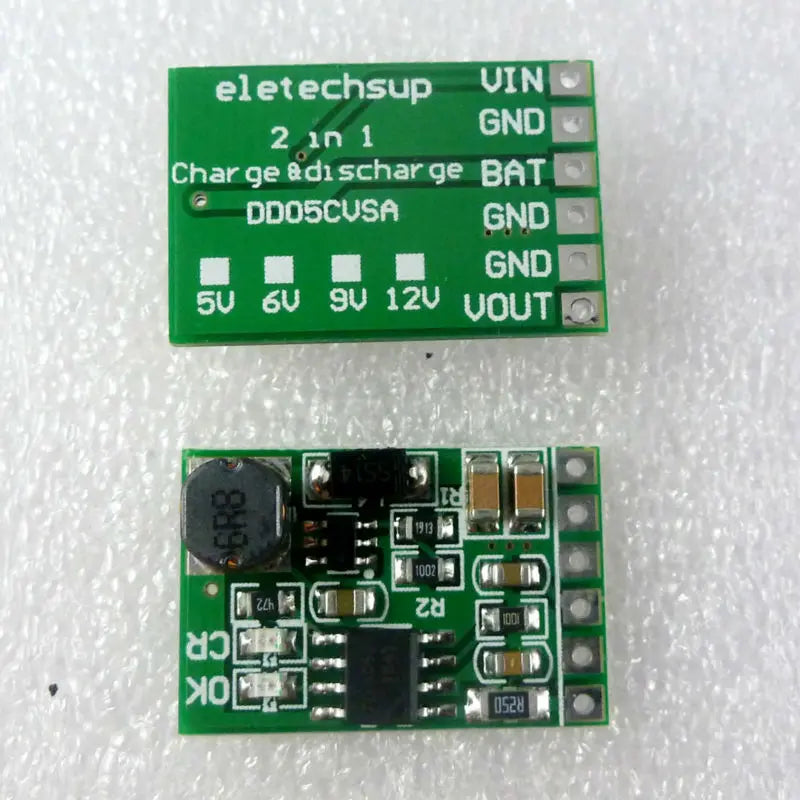

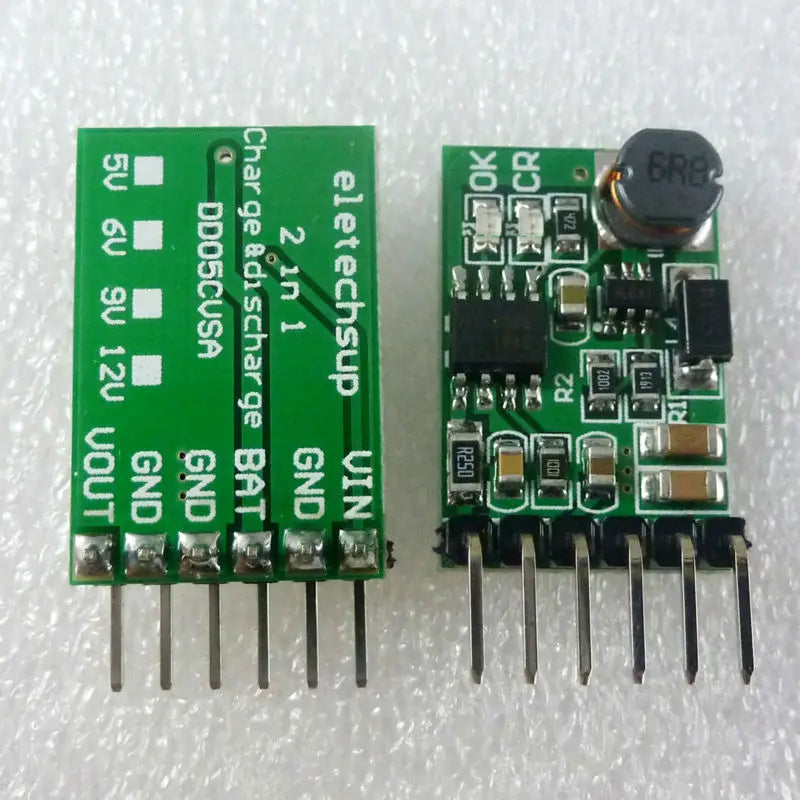

2-in-1 1CH DC-DC Step-Up Module 4.5-8V to 5V UPS DIY DD05CVSA

2-in-1 1CH DC-DC Step-Up Module 4.5-8V to 5V UPS DIY DD05CVSA

2-in-1 1CH DC-DC Step-Up Module 4.5-8V to 5V UPS DIY DD05CVSA

$25.79

Version Output 12V with Pin Output 5V with Pin Output 6V with Pin Output 9V with Pin Output 12V no Pin Output 5V no Pin Output 6V no Pin Output 9V no Pin

Product Name: 2 In 1 CH Discharger Board DC DC Converter Step-up Module Charge In 4.5-8V Boost Out 5V For UPS Mobile Power Diy

Packing list:

10 PCS DD05CVSA 2 in 1 charge and boost DC DC Converter

Description:

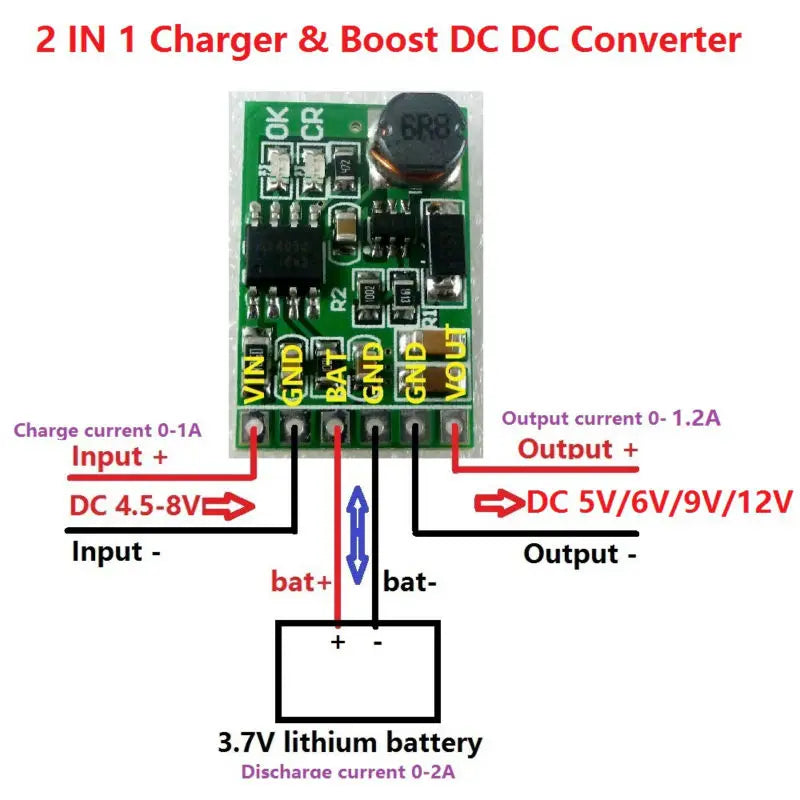

2 in 1 charge and Discharger(boost) modules

Charge voltage : DC 4.5V-8V(Recommend DC 5V)

Charging current : 0-1A

Full charge voltage : 4.2V+-2%.

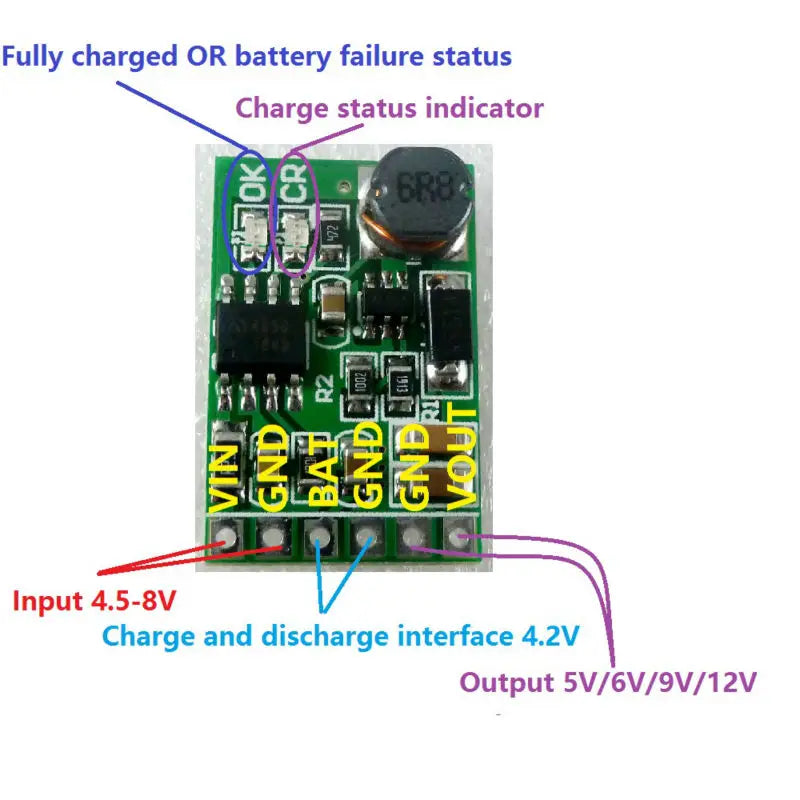

Led indicator : ''OK'' LED is fully charged OR battery failure status indicator;

''CR'' LED is charge status indicator

(Boost in)Discharge current : 0-2A;

(Boost in)Discharge quiescent current : 450uA

(Boost in)Discharge conversion efficiency : 78%-90%

(Boost out)Output current : 0-1.2A(5V),0-1A(6V),0-0.66A(9V),0-0.5A(12V);

Operating ambient temperature : -40° to +85°

Storage temperature : -65° to +125°

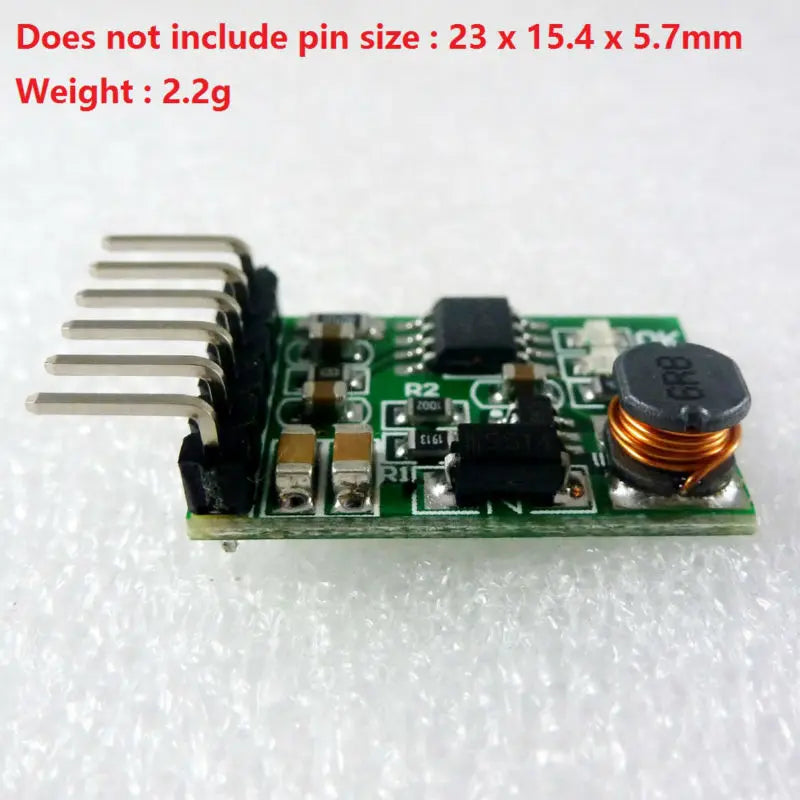

Does not include pin size : 23 x 15.4 x 5.7mm

Weight : 2.2g(with Pin),1.8g(no Pin)

Note :

This module without lithium battery over-discharge protection,

Applications:

Battery powered equipment

Lithium Battery 18650 14500

Mobile phone diy

UPS power supply equipment diy

Solar charging

MP3/MP4 player

Audio equipment

Video equipment

Portable Devices

Bluetooth Applications
