5-in-1 32DI/32DO Modbus RTU RS485 5V/3.3V TTL Board R4IOJ32

R4IOJ32 is a 32-channel RS485 multi-function IO core board developed and produced by eletechsup. Its IO mode can be set to 32DI/32DO/16DI-16DO/8DI-24DO/24DI-8DO. Input and output can be set to NPN/NPN type. The board is very small and can be easily embedded in your various function boards.


R4IOI16 is a 16-channel multi-function RS485 IO core board developed and produced by eletechsup. Through register configuration or jumper selection, it can expand multiple DI-DO modes, and the 2.54MM pin header terminal can be easily emb1 Power supply1: DC 6-26V(anti-reverse);Power supply2: DC 4-5.5V(reverse connection prohibited)

2 Working current: 9MA

3 MODBUS RTU function codes: Write 05/06/15/16, Read 01/02/03

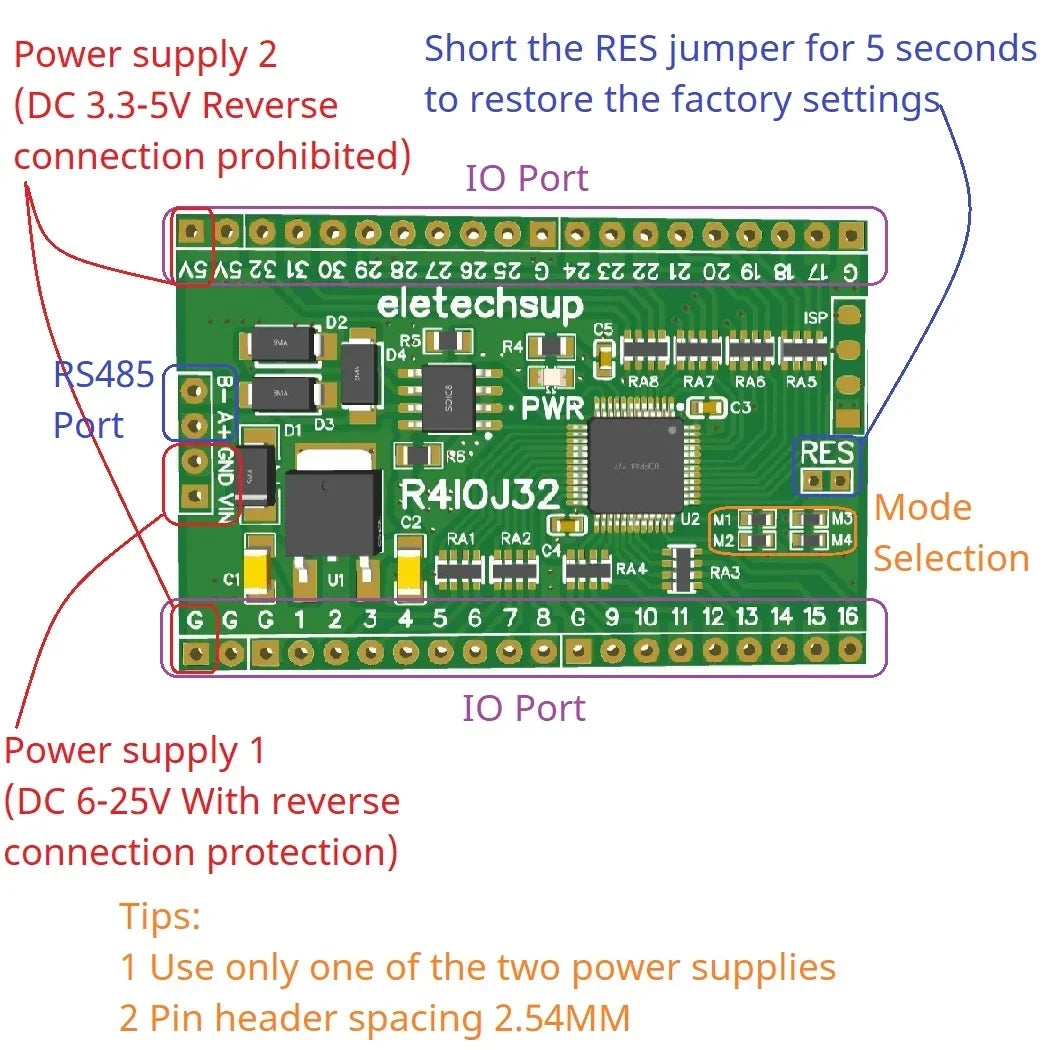

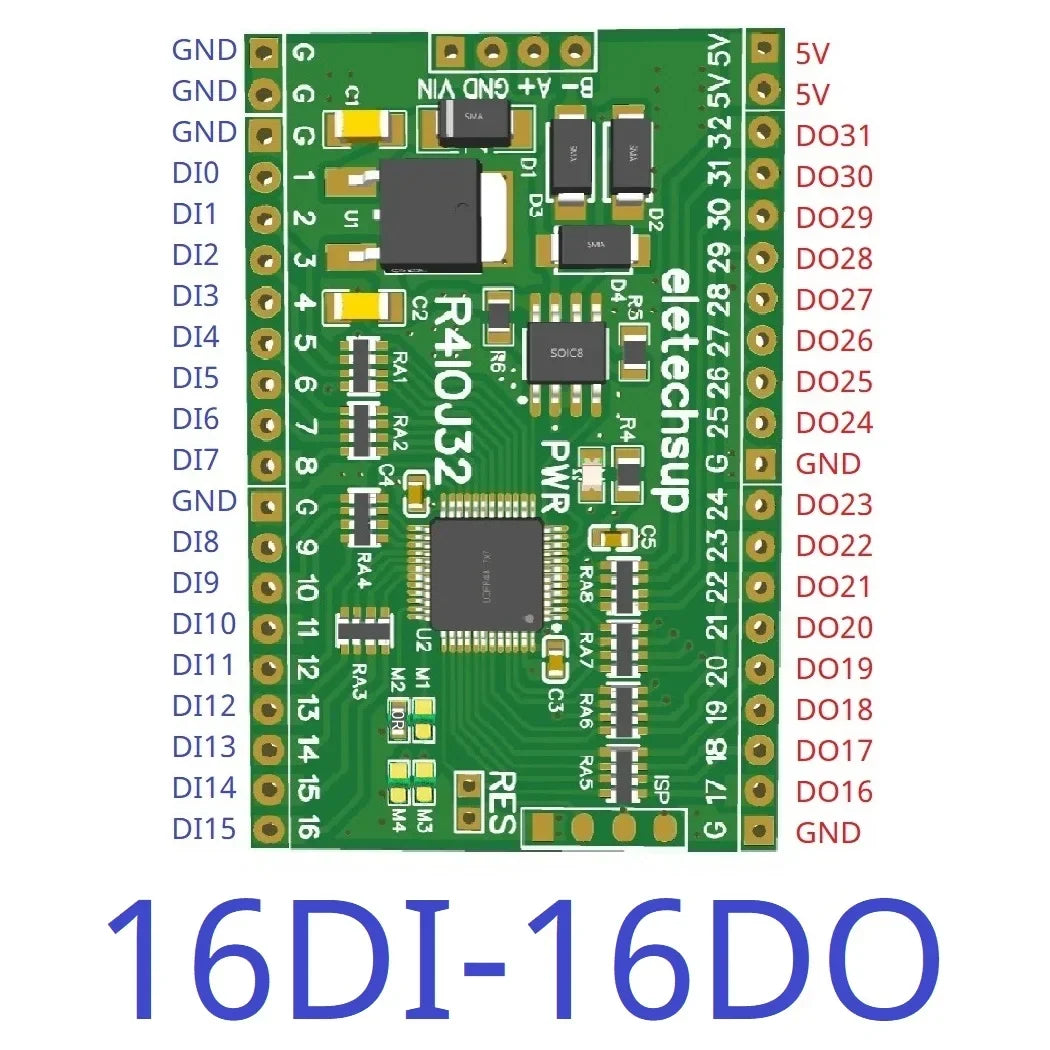

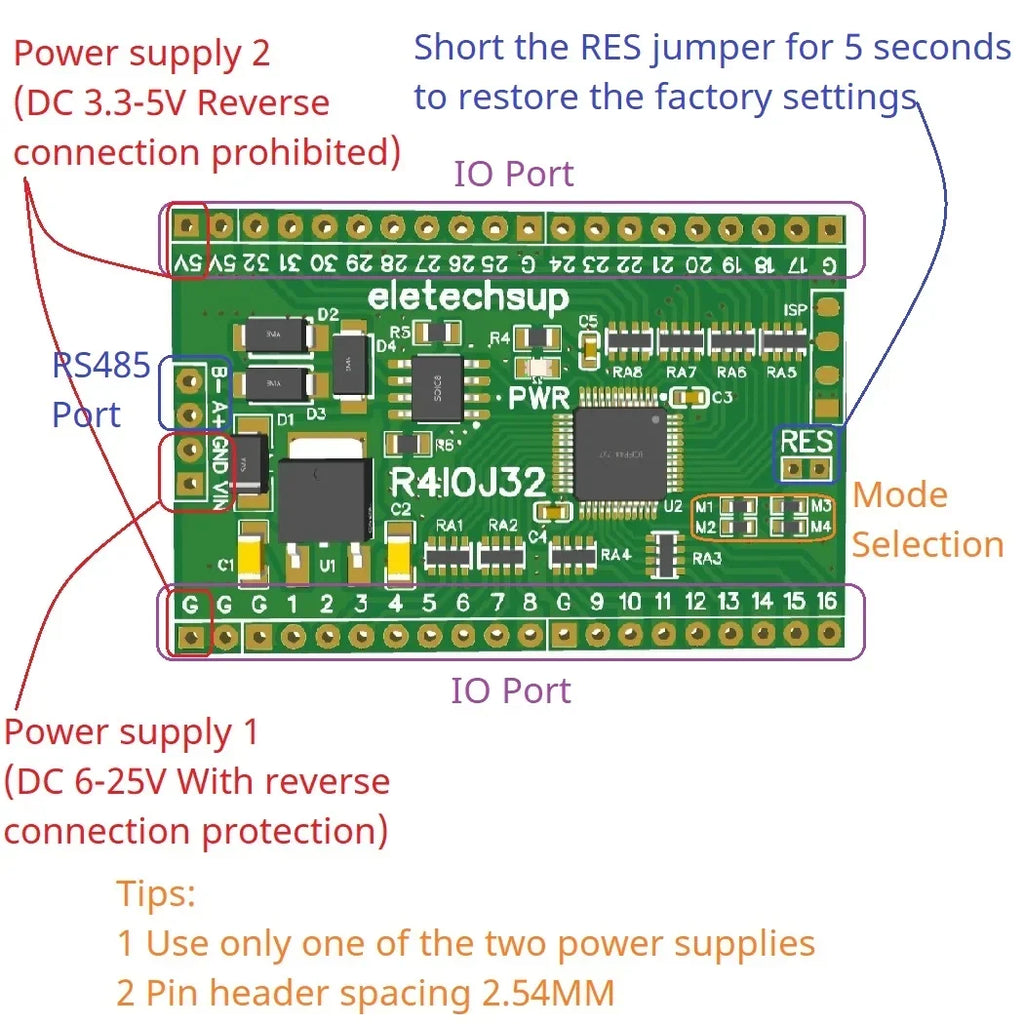

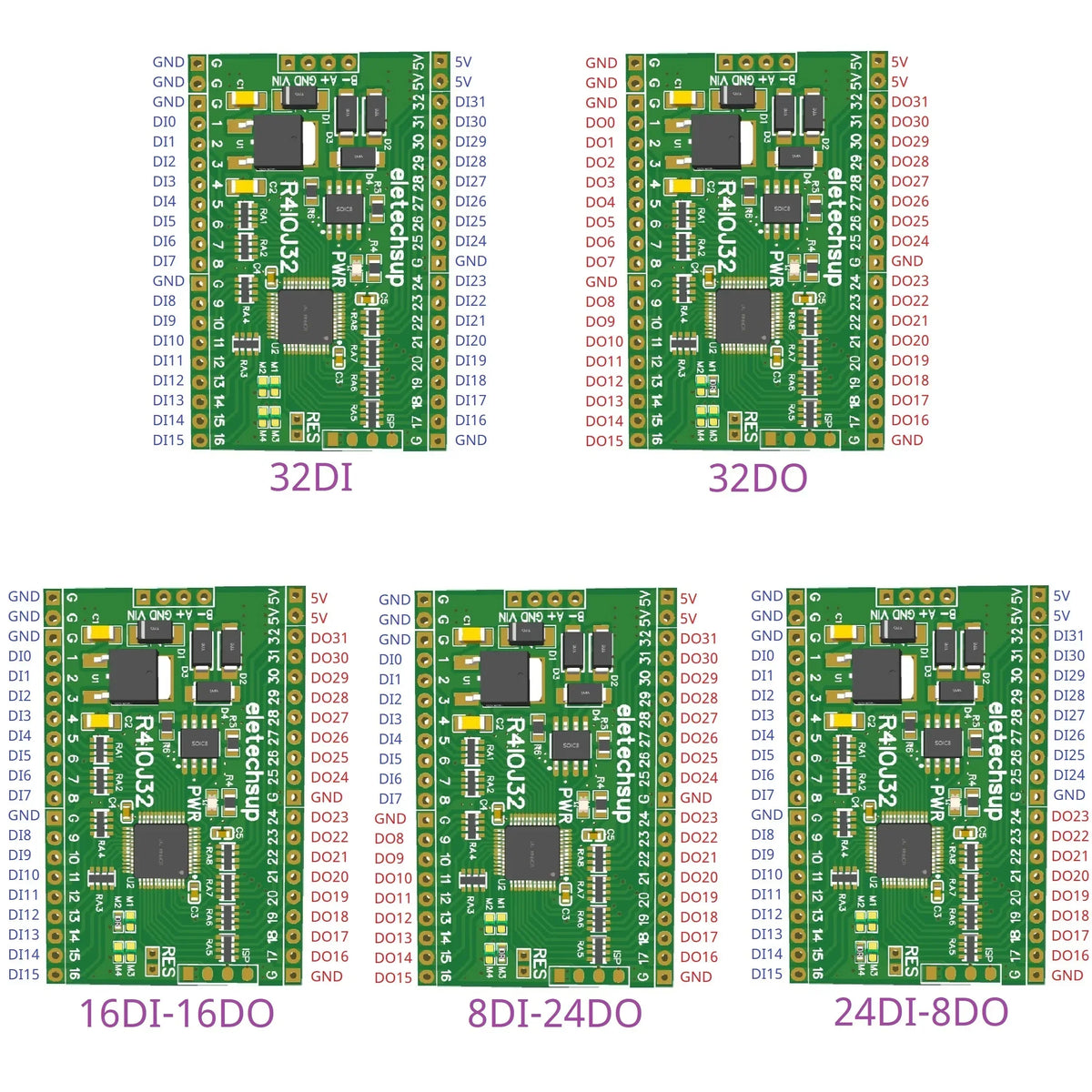

4 Five function IO modes can be selected by jumper: 32DI/32DO/16DI-16DO/8DI-24DO/24DI-8DO

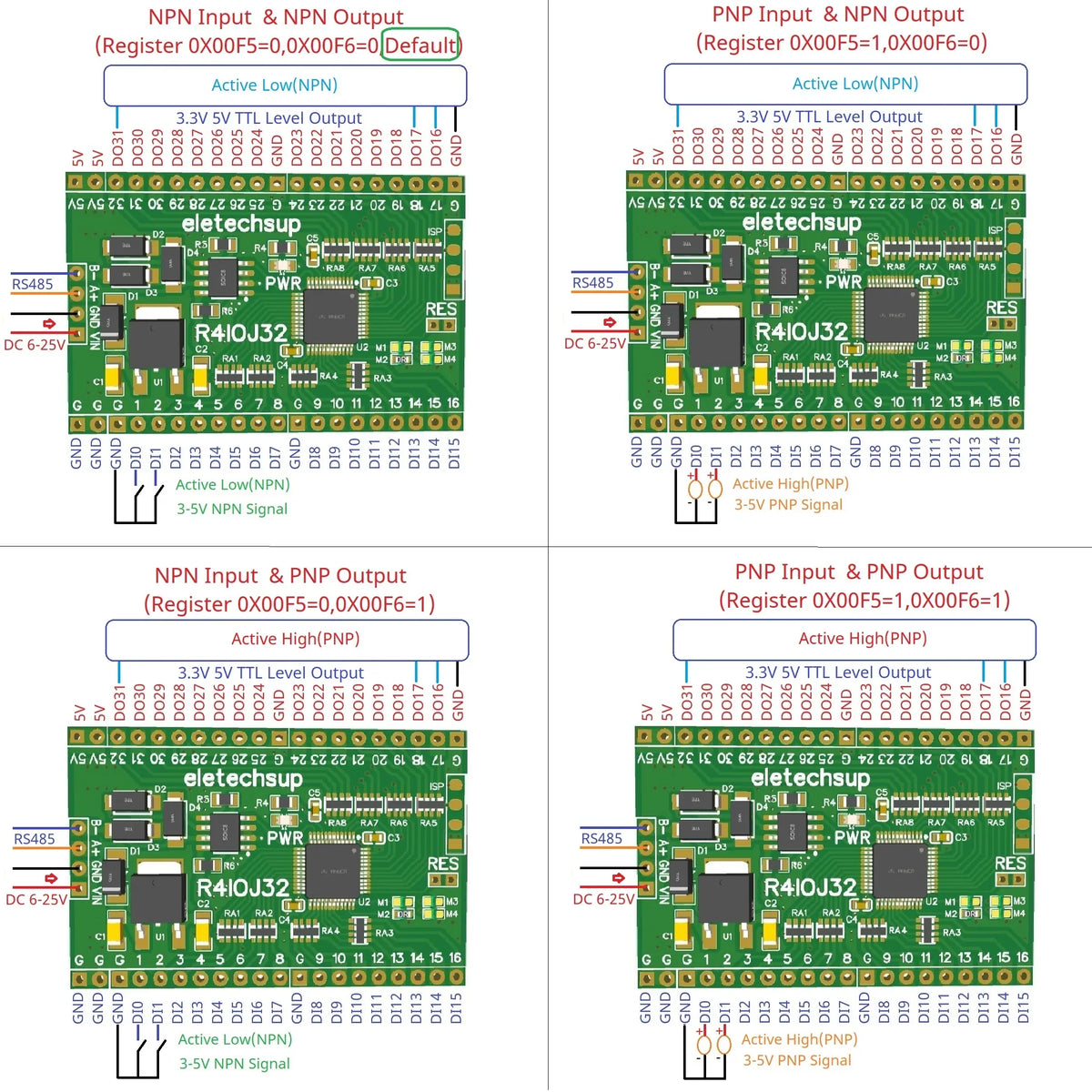

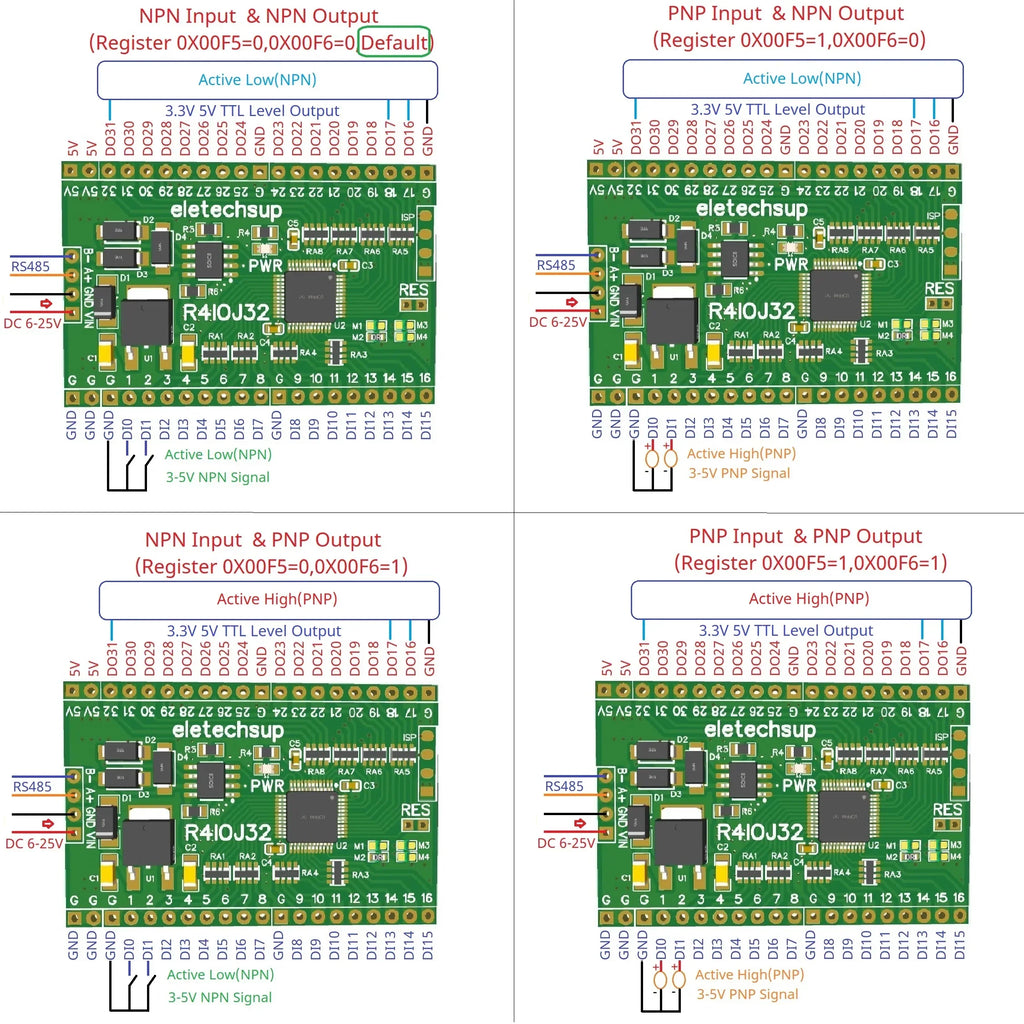

5 By modifying the 0X00F5/0X00F6 register, the input and output levels (NPN/PNP) can be switched

6 By setting the 0X00F3 register, you can restart when communication is abnormal.

7 By setting the 0X00F4 register, you can close all output ports when communication is abnormal.

8 Input mode: Support 3.3V/5V TTL level input, there are two input modes of low level input (default) and high level input

9 Output mode: 5V TTL level, low level (default) / high level output

10 In MODBUS command mode, it can support up to 247 devices in parallel

11 Input port status supports query (default) and automatic reporting

12 Baud-Rate:1200 2400 4800 9600(default) 19200 38400 57600 115200, None/Odd/Even Parity

13 2.54MM pin header interface, easy to use Dupont wire or breadboard connection

14 Size: 51*34*4mm(Very Small)

15 Weight: 8grams(Very Light)

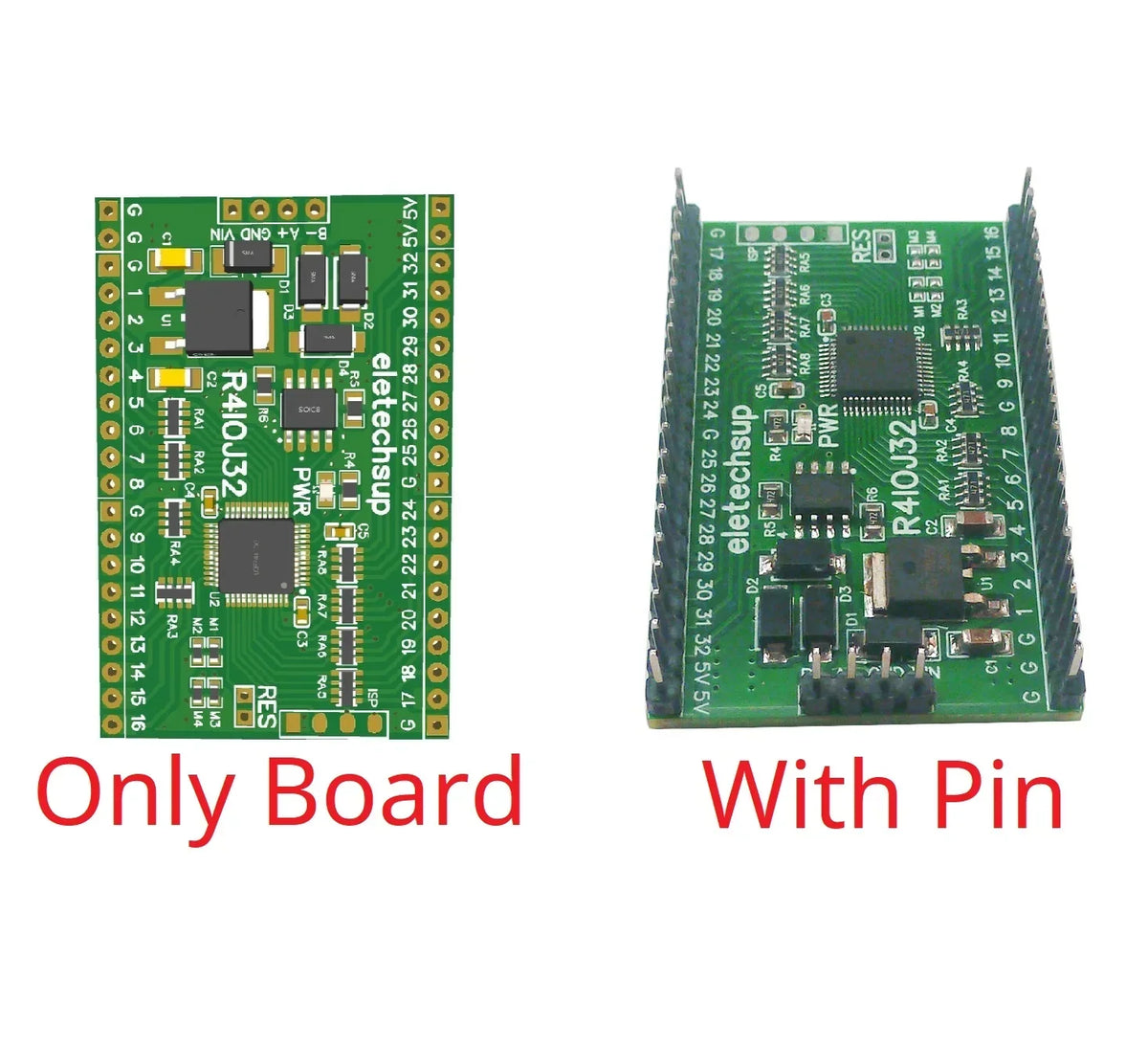

This board is available in ''Only Board'' and ''With Pin'' versions:

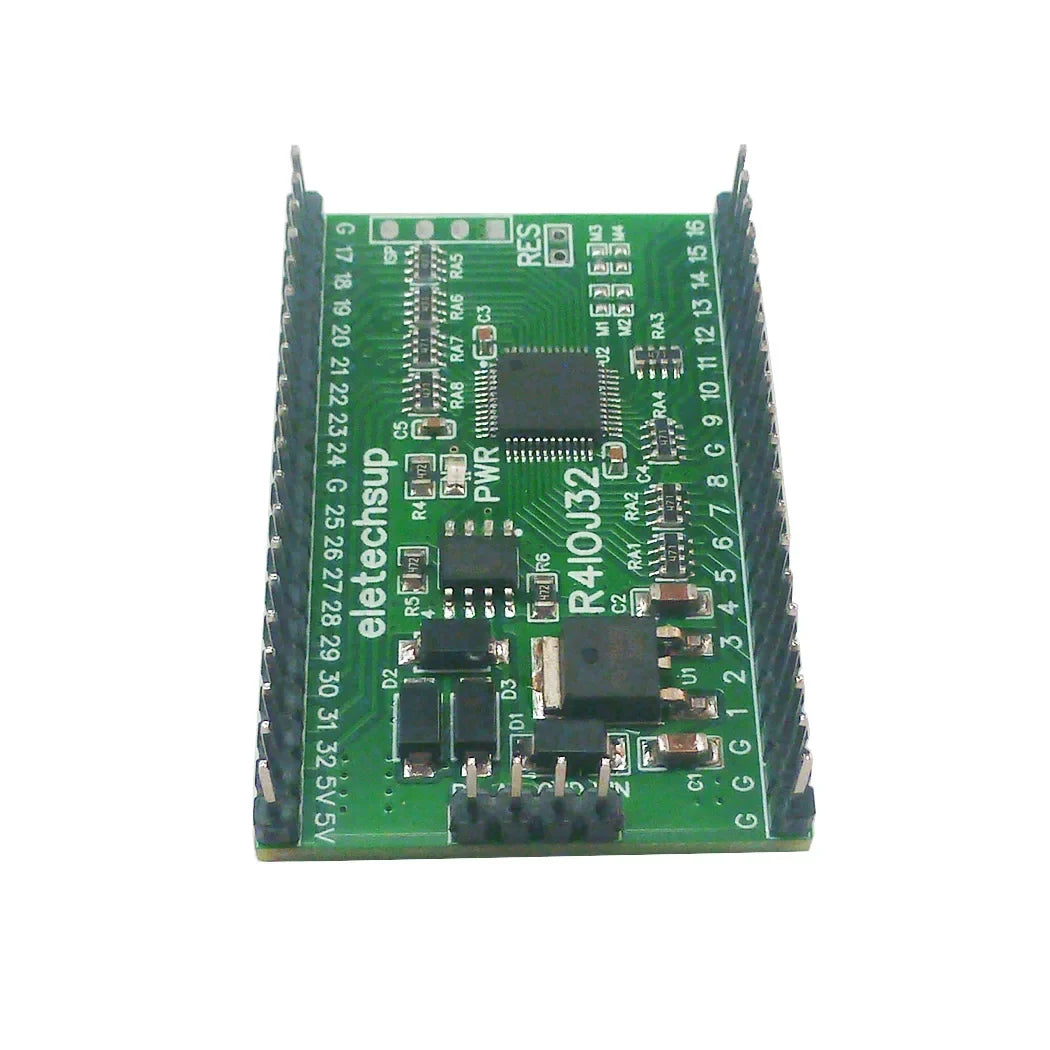

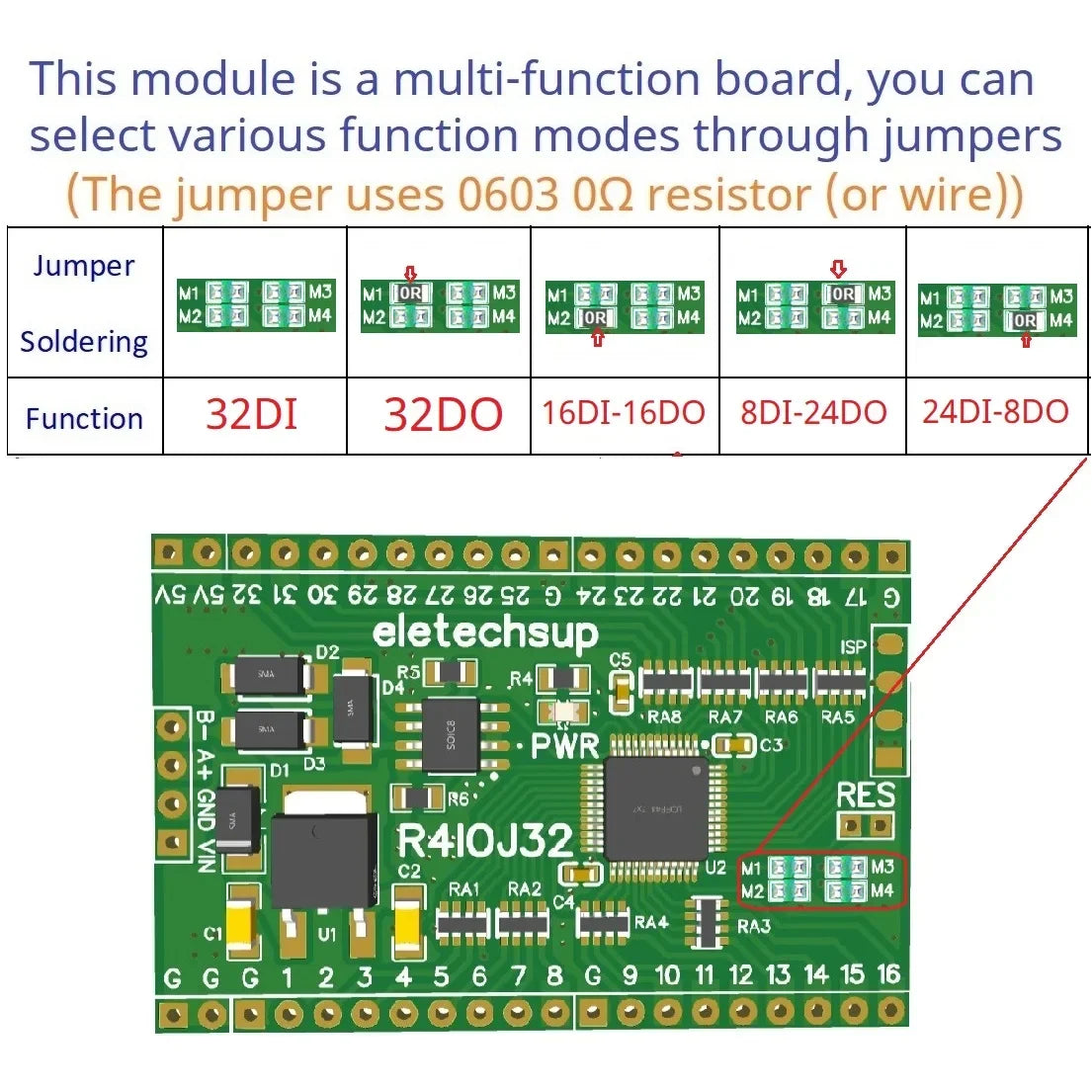

This module is a multi-function board, you can select various function modes through jumpers.
The jumper uses 0603 0Ω resistor (or wire)


If you need more detailed documentation, please contact me.
