Description:


DC DC Boost Converter Module working frequency 1MHZ.
Up to 84% Efficiency
Quiescent current : Turn on output 0.4mA
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
Size(Does not include pin) : 20 x 15 x 6MM
Weight : 1.5g(no Pin)

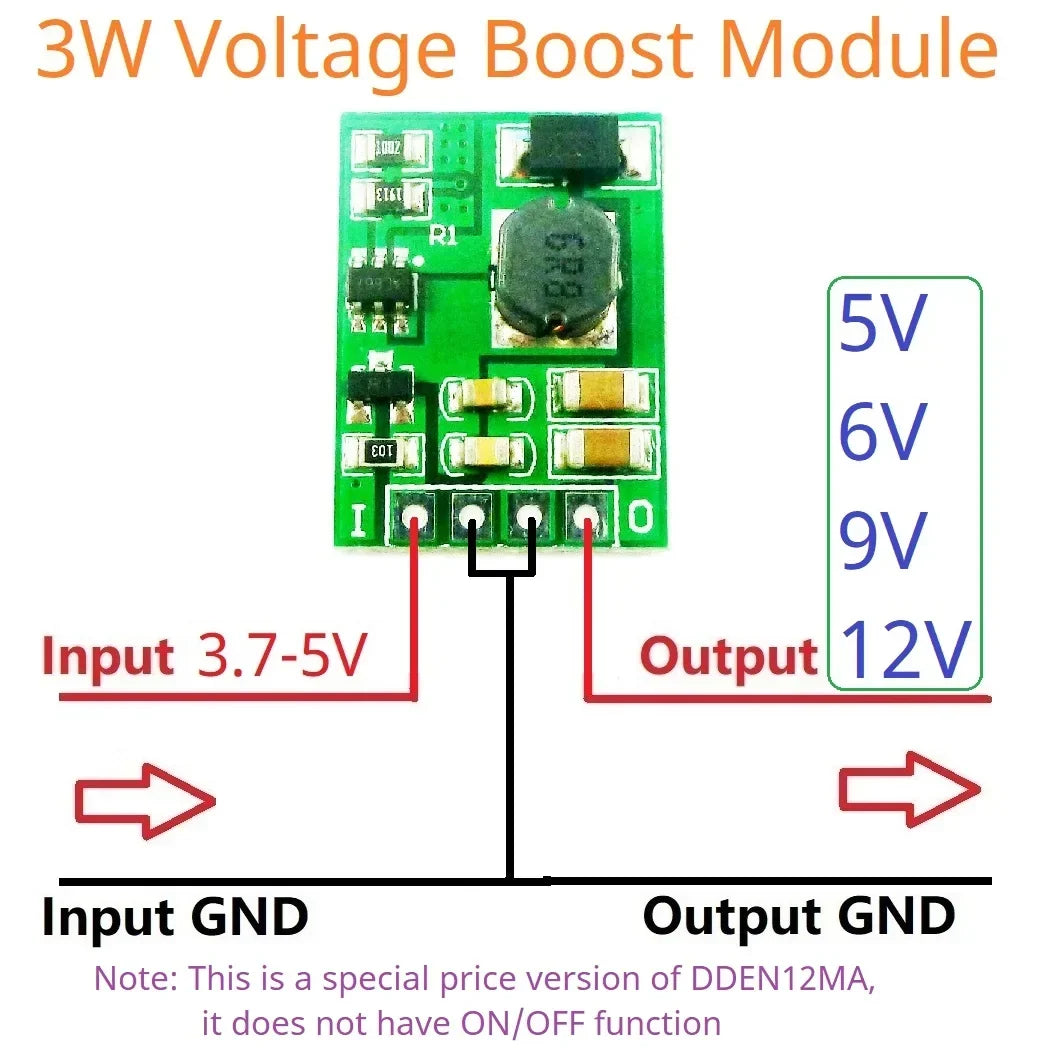

Note: This is a special price version of DDEN12MA, it does not have ON/OFF function,The maximum output function is only 3W



Protection :

Over current protection(OCP)
Over voltage protection(OVP)
Short circuit protection(SCP)
Over temperature protection(OTP)

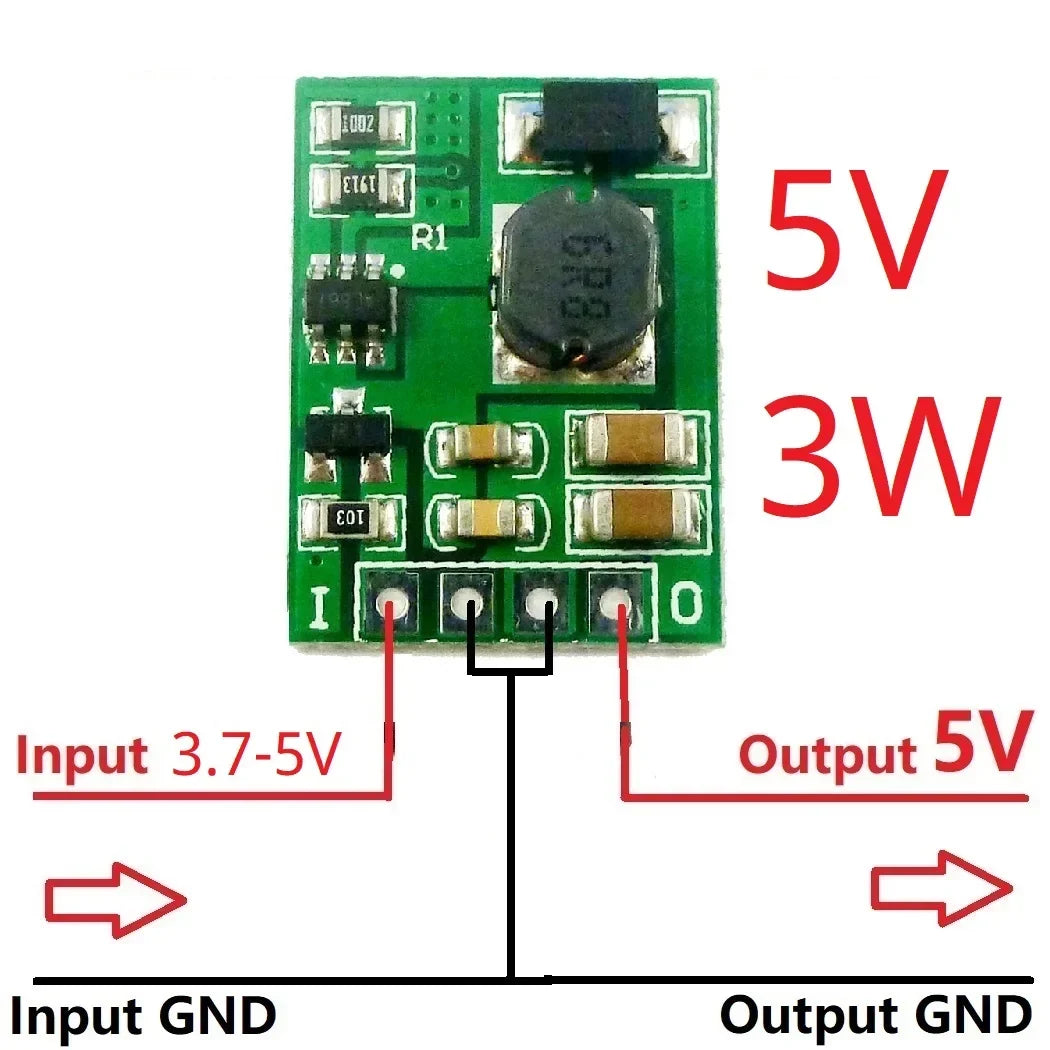

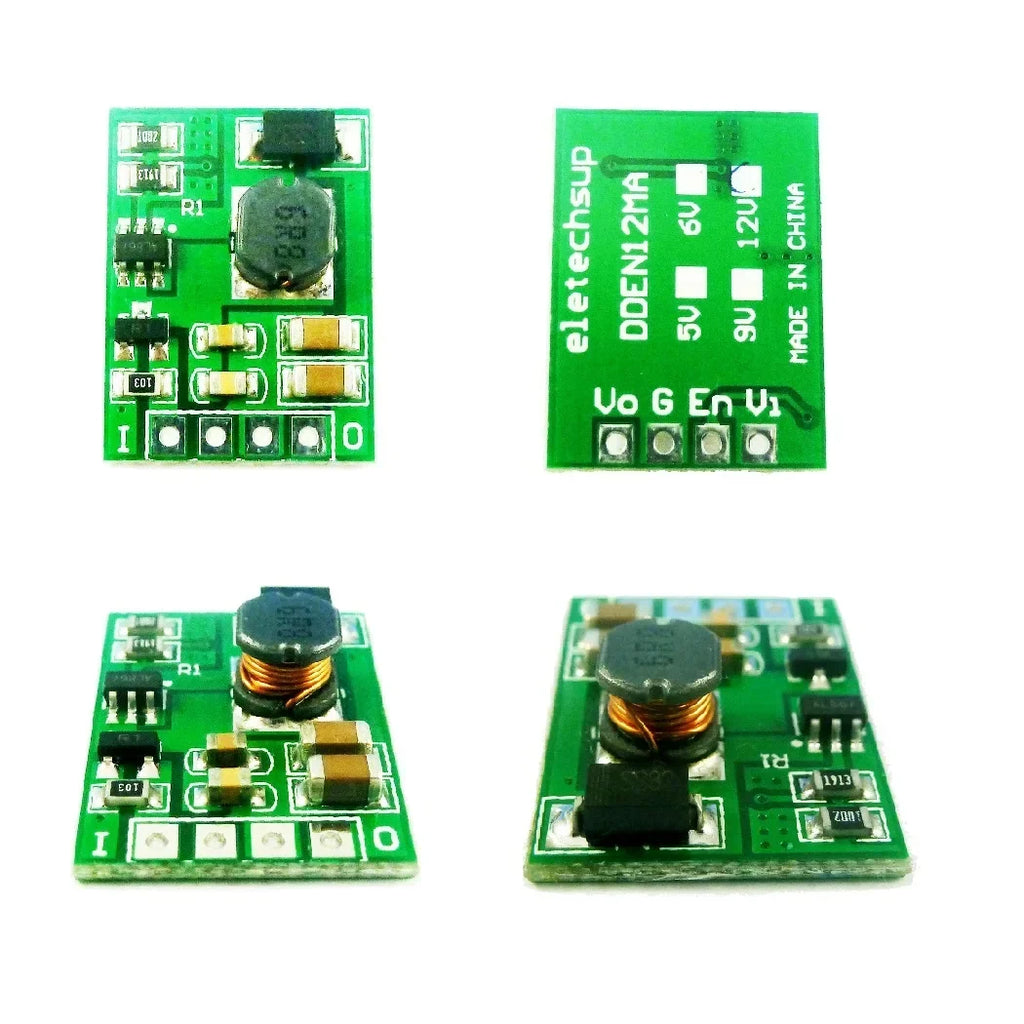

Pin description:

Vi : Input positive(+)
En : This function is invalid and can be connected to GND
G : Input and Output negative(GND/-)
Vo: Output positive(+)


Output 5V :

Input voltage DC 3.7 ~ 5V,output DC 5V±3%
Maximum output : 5V/600MA


Output 6V :

Input voltage DC 3.7 ~ 6V,output DC 6V±3%
Maximum output : 6V/500MA


Output 9V :

Input voltage DC 3.7 ~ 6V,output DC 9V±3%
Maximum output : 9V/330MA


Output 12V :

Input voltage DC 3.7 ~ 6V,output DC 12V±3%
Maximum output : 12V/250MA



Applications

Battery powered equipment
Instrumentation, multimeter
Small power motors
PTZ Camera webcam
IP Camera
Toy car boat
Model aircraft
power bank
LED Lighting
WIFI Router
PLC RS485 devices
